BrickPower All-in-One

Hybrid Inverter + Battery
all-in-one-brickpower
easy-installation

Easy Installation
& Maintenance

for-home

Suitable for
Home Use

eco-friend

Eco-friendly

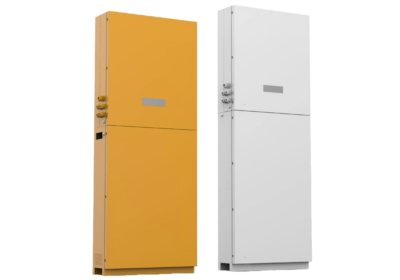

BrickPower Series

BRE-I-5K-10K

5kW hybrid inverter + 10kWh lithium-ion battery

BRE-I-5K-14K

5kW hybrid inverter + 14kWh lithium-ion battery

4 CATL high performance and long-life LFP batteries are fixed inside the battery box, providing long-lasting, safe, and reliable energy to the house.

  • Built-in 5kW hybrid inverter
  • Easy installation and maintenance
  • Suitable for home use
  • Providing continuous power to your home
  • BrickPower’s EMS provides 24×7 real-time monitoring and alerting through built-in system protection mechanisms and remote diagnostics.
  • Using its cloud-based application, it demonstrates real-time performance and savings to customers.

It also integrates the Virtual Power Plant function, which can support the electricity grid.

all-in-one-hybrid-inverter-Battery
Specification
Models BRE-I-5K14K BRE-I-5K10K
Rated energy 13.88kWh  9.6kWh
Rated voltage 51.2V 48V
Max.PV input power 6500W
Grid output power 5000W
Off-grid output power 3000W
Communication  RS485 / 4G / WiFi / Ethernet / CAN
VPP software access Support
Cell type LFP
IP grade IP54
Size W*H*D 620×1750×210mm 620×1600×210mm
Weight  185kg  140kg
