Power Conversion Systems for Energy Storage

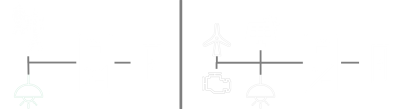

Grid-following & Grid-forming Solutions
SINEXCEL PCS
SINEXCEL Power Conversion Systems (PCS) provide bi-directional power conversion between battery energy storage systems and AC electrical systems.
Manufacturer:
Shenzhen Sinexcel Electric Co., Ltd.
Australian Importer / Distributor:
Xcel Tech Pty Ltd

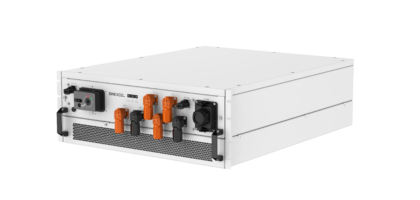

PWS1-135M-EX
135 kW Energy Storage Power Conversion System
| Nominal Power | 135 kW |
| AC Voltage | 400 Vac |
| DC Voltage Range | 600–1000 Vdc |
| AC Connection | 3P4W |
| Maximum DC Current | 193 A |
| Enclosure | IP66 C5 |
| Cooling | Intelligent air cooling |
| Communication | RS485 / Ethernet / CAN |

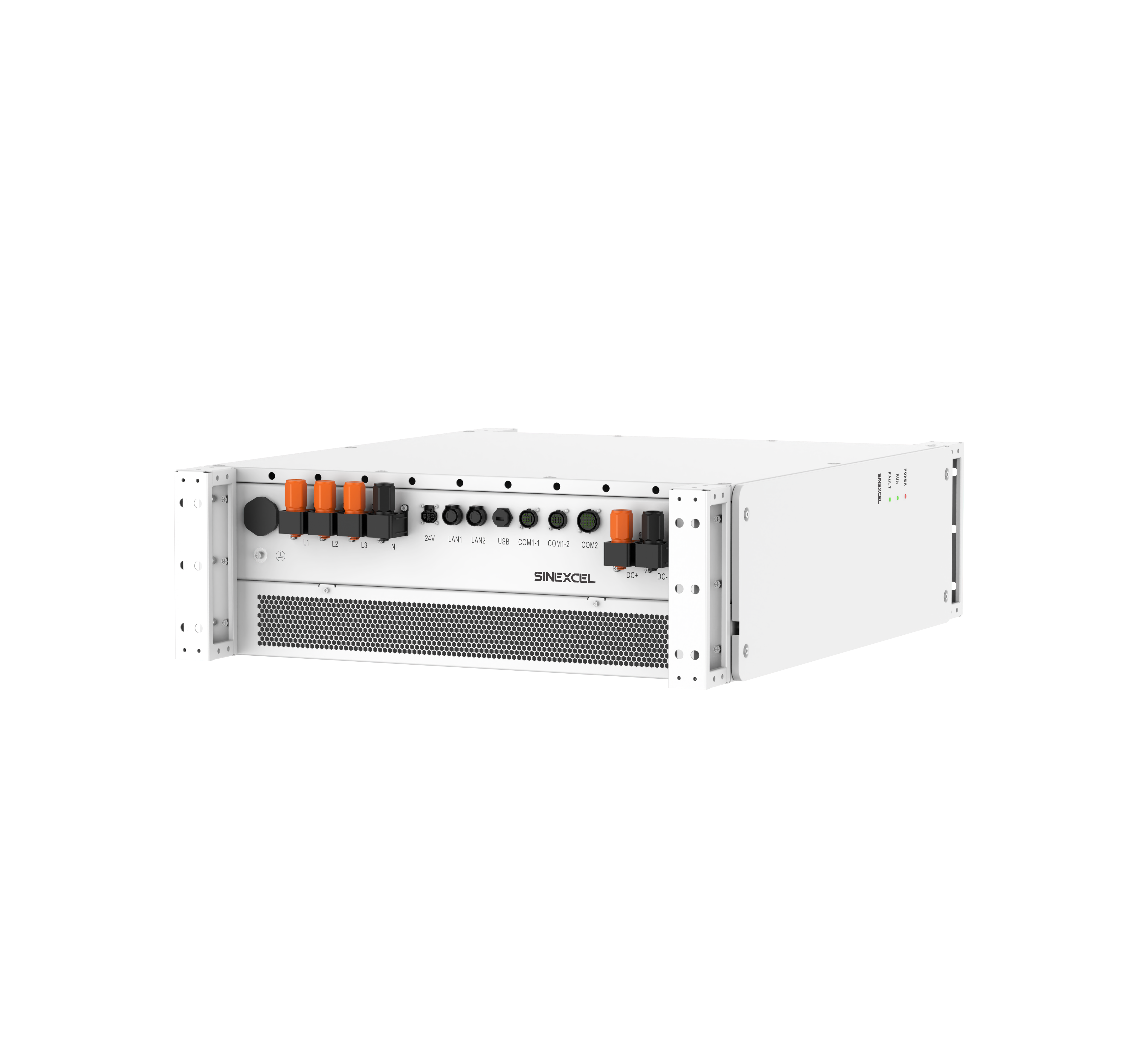

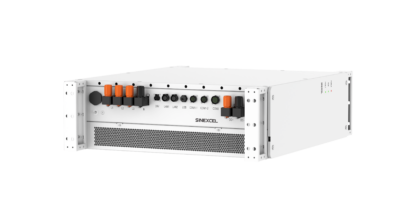

PWS1-160M-H-EX
160 kVA Energy Storage Power Conversion System
| Nominal Power | 160 kVA |
| AC Voltage | 400 Vac |
| DC Voltage Range | 720–1500 Vdc |
| AC Connection | 3P4W / 3P3W |
| AC Current | 231 A |
| Maximum Efficiency | 98.5% |
| Enclosure | IP66 |
| Communication | RS485 / Ethernet / CAN |
Manufacturer
Shenzhen Sinexcel Electric Co., Ltd.
SINEXCEL is the manufacturer of the power conversion systems listed on this page.
Product datasheets, user manuals, installation instructions and warranty information published on this page are provided for SINEXCEL PCS products supplied in Australia by Xcel Tech Pty Ltd.
